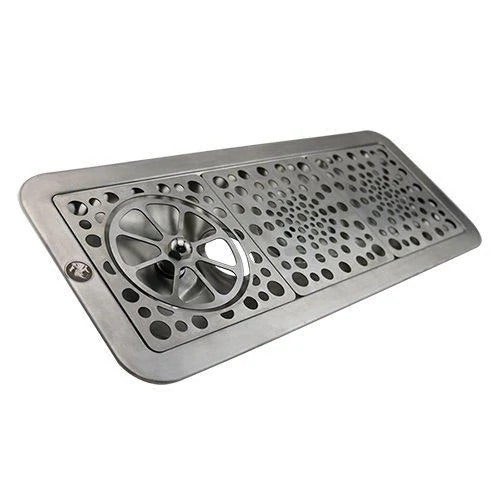

Rhino Pitcher Rinser 600mm with Spin Jet

Rhino Coffee Gear's new pitcher rinser design brings with it a number of features you have been asking for!

Better Drainage - The 3 piece drain tray has an improved design to ensure there is no static build-up of residue along with a generous drain outlet.

Bigger Vessels  - The large actuator plate makes it useful across a broader range of equipment.

Multiple Rinser Positions  - has an extra position allowing you to move the rinser to the center or leave at one end. The 3 piece grate design, makes it very adaptive to many environments and allows for the best orientation. Another idea is to put an additional rinser in place, this option is great for busy cafes or to allow for dedicated purpose – for example, use one sprayer for milk and the other with spinjet for tea plungers.

Optional Spinjet Spray Mechanism - The new spinjet valve sprays and spins at the same time creating a more robust mechanical cleaning action than normal rinsing valves. It is ideal for plungers using tea & coffee grounds, milk, and other residues that tend to hold firm.

Install Parts included with each rinser you will find some fittings and hoses to make installation easier ( 3/8 push fit inlet plus elbow option, 1 meter of inlet hose and drain hose with clip).

Specifications

NSF Certified  - All Rhino Coffee Gear's Milk Pitcher Rinsers are NSF Certified.

Dimensions (approx): Width - 231mm x Length - 600mm

Standard Inclusions

1x Sink

1x Spray mech with Actuator plate

3 Piece grate –1x plate with actuator hole

                           2x drain tray

- 1 x John Guest Hose Adapter

* drain hose not included

Please note: Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. We take no take responsibility for installation cut-out errors and provides the sizes and dimensions as a layout guide only.

Depth Requirements:
The Rhino rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.

Give Your Sink a Lift

Don't want to cut into your bench? The Rhino Coffee Gear Vessel Rinser Bench Station has been designed to provide another installation option for cafes, restaurants, bars and other venues. Perfect for spaces that don't allow for in-bench vessel rinser installations, the Rhino Bench Station lifts the vessel rinser up off the bench in its own stainless steel casing. Bench Station and Rinsers sold separately.
